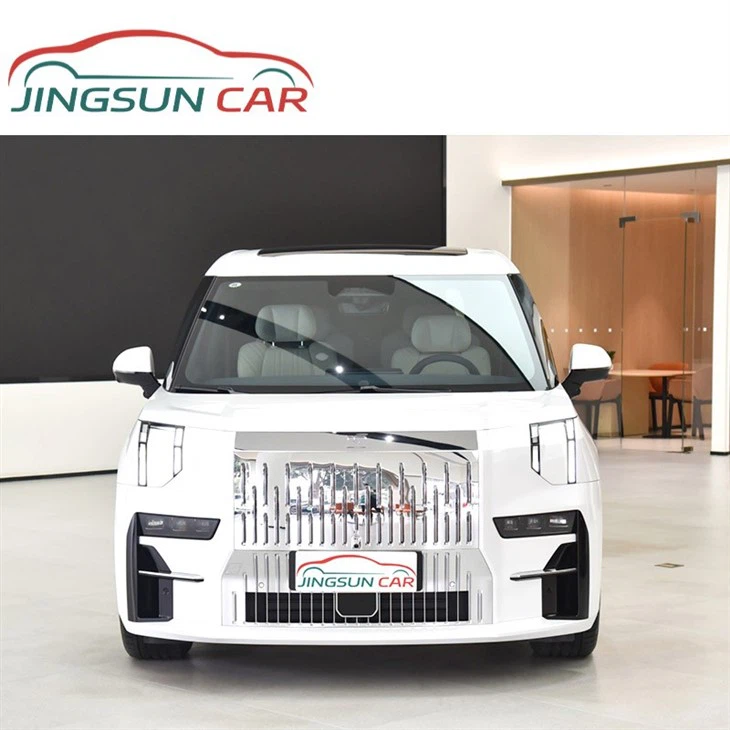

Kev tsim qauv
Lub ntsej muag pem hauv ntej ntawm ZEEKR 009 yog nruab nrog thaj tsam loj ntawm chrome-plated kaw grille nrog "Funtain of Light" lus teeb. Lub teeb taub hau txais kev sib cais tsim. Sab saum toj nruab hnub khiav teeb muaj qhov tshwj xeeb zoo. Tag nrho pem hauv ntej ntawm lub tsheb yog square thiab tuab, uas yog heev imposing.
Lub taub hau
ZEEKR 009 yog nruab nrog cov teeb taws sib cais thiab dhau-hom taillights, nrog lub teeb sawb nyob rau hauv qhov chaw ci ntsa iab; tag nrho cov series siv LED teeb qhov chaw, nruab nrog matrix headlights thiab adaptive siab thiab qis beams.

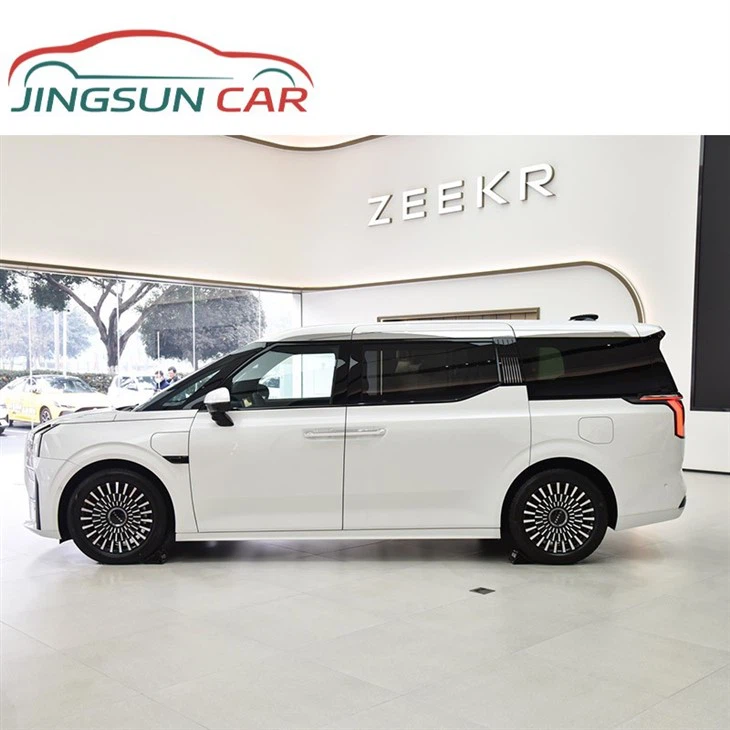

Tsheb Lub Cev Tsim
ZEEKR 009 yog positioned raws li ib nrab-rau-loj MPV, nrog lub cev qhov ntev ntawm 5209/2024/1858mm, wheelbase ntawm 3205mm, thiab ib tug yooj yim sab tsim. Saum toj no nws yog ib tug chrome trim vaj huam sib luag, lub duav rov sauv ntawm lub pem hauv ntej fender mus rau lub taillight, thiab lub rear ntawm lub tsheb yog square thiab muaj ib tug zais rear wiper.
Qhov chaw xis nyob
ZEEKR 009 lub rooj zaum yog ua los ntawm cov khoom siv tawv Nappa, thiab kab thib ob siv lub rooj zaum dav hlau uas txhawb kev hloov hluav taws xob. Txoj kev khiav yog 1.1m ntev thiab nruab nrog lub qhov cua, cua sov, zaws, nco thiab hluav taws xob ceg so.
6-Seater Layout
ZEEKR 009 txais yuav ib qho 2-2-2 rau lub rooj layout. Tsis muaj txoj kab hauv nruab nrab ntawm kab thib ob. Txhawm rau nkag mus rau kab thib peb, koj yuav tsum tau kho lub rooj zaum thib ob kom nkag los ntawm ob sab.
Rooj Tswjhwm
Lub armrests ntawm ob sab ntawm lub rooj zaum thib ob ntawm ZEEKR 009 yog nruab nrog lub rooj hloov khawm, uas tuaj yeem kho lub rooj zaum pem hauv ntej thiab rov qab txav, lub nraub qaum, sab ceg, thiab tseem tswj lub rooj zaum cua, cua sov thiab zaws. Muaj lub suab tsa suab khawm nyob rau sab xis sab xis.
Nkag mus rau kab thib peb Nrog Ib Nyem
ZEEKR 009 yog nruab nrog ib lub pob nyob rau sab nraud ntawm kab thib ob ntawm lub rooj zaum kom nkag mus rau kab thib peb. Ib lub pob nyob rau pem hauv ntej tswj cov kab thib ob ntawm cov rooj zaum kom txav mus rau pem hauv ntej, thiab ib lub pob hauv qab tswj lub rooj zaum rov qab.
Qhov Rooj Vaj Huam Sib Luag Tswj khawm
ZEEKR 009's thib ob-kab qhov rooj vaj huam sib luag yog nruab nrog luv tswj cov nyees khawm. Nyob rau hauv pem hauv ntej yog lub voj voog, uas qhia lub moos los ntawm lub neej ntawd thiab tuaj yeem hloov mus tswj lub tshuab cua txias. Hauv qab yog sab laug thiab sab xis qhov rooj qhov rais nqa thiab qhov rooj qhib.
Ob Kab Ntawm Cov Rooj Me
Qhov thib ob kab ntawm ZEEKR 009 yog nruab nrog ob lub rooj me me, uas tuaj yeem muab tais thiab khaws cia rau hauv lub rooj zaum sab hauv. Qhov saum npoo yog npog nrog NAPPA tawv thiab txhawb nqa kev hloov pauv ntawm lub kaum sab xis.
Lub Rooj zaum thib peb
Qhov thib peb kab ntawm ZEEKR 009 lub rooj txhawb nqa kev hloov kho ntawm lub backrest lub kaum sab xis, thiab cov rooj zaum tuaj yeem folded ntawm nws tus kheej lossis 180 degree rov qab; kab thib peb muaj qhov chaw txaus, ib qho chaw tiaj tus, tuab padded lub rooj zaum cushions, thiab kev nplij siab zoo.
Rooj zaum pem hauv ntej
ZEEKR 009 lub rooj tsav tsheb tseem ceeb txhawb nqa 12- txoj kev hloov hluav taws xob, thiab cov neeg caij tsheb txhawb nqa 8- txoj kev hloov hluav taws xob. Nws los ntawm tus qauv nrog lub qhov cua, cua sov, zaws thiab nco.
Tsheb Ntxim Hlub
ZEEKR 009 los tus qauv nrog lub tsheb fragrance, uas muaj peb adjustable concentrations: qis, nruab nrab thiab siab. Muaj peb fragrances: Helsinki Snow, Silent Terror thiab Perfume No. 9.
Segmented Skylight
ZEEKR 009 yog nruab nrog ib ntu uas tsis qhib lub hnub ci thiab hluav taws xob hnub ci nyob rau pem hauv ntej thiab nram qab.
Boss Khawm
ZEEKR 009 yog nruab nrog tus thawj khawm nyob rau sab hauv ntawm cov neeg caij tsheb lub rooj kom yooj yim rau cov neeg caij tsheb los kho lub hauv ntej thiab nraub qaum thiab nraub qaum ntawm cov neeg caij tsheb.
Smart Cockpit
Lub console nruab nrab ntawm ZEEKR 009 yog qhwv rau hauv ib cheeb tsam loj ntawm tawv, nrog ib tug dub high-gloss trim vaj huam sib luag nyob rau hauv nruab nrab. Cov cua qhov hluav taws xob yog tsim los muab zais. Nyob rau hauv pem hauv ntej ntawm lub A-pillar yog ib tug loj-loj daim duab peb sab qhov rais rau zoo visibility.
Dash Board
Nyob rau hauv pem hauv ntej ntawm tus neeg tsav tsheb lub rooj yog 10.25-inch puv LCD ntsuas vaj huam sib luag nrog ib qho yooj yim interface tsim. Sab saum toj qhia qhov ceev, sab laug qhia cov ntaub ntawv tsheb thiab roj teeb lub neej, thiab txoj cai tuaj yeem hloov mus tso suab paj nruag, cua txias, thiab hu xov tooj.
Central Control Screen
Hauv nruab nrab ntawm lub console nruab nrab yog 15.6-inch central tswj npo, nruab nrog Qualcomm 8155 nti, khiav ZEEKR OS system, txhawb nqa 5G network, txhawb nqa 6-zone lub suab tsa suab, thiab kev sib koom ua ke tsheb teeb tsa thiab kev lom zem ua haujlwm.
Rov qab Screen
ZEEKR 009 yog nruab nrog 15.6- nti npo saum kab thib ob, txhawb nqa hluav taws xob folding, tuaj yeem tswj cov cua txias thiab chav tsev, muaj cov suab paj nruag thiab video software, thiab tuaj yeem siv nrog lub koob yees duab zoo rau video conferencing.
Tawv Steering Log
ZEEKR 009 yog nruab nrog lub kauj kauj tsheb tawv, uas tau txais kev tsim peb-hais lus thiab txhawb nqa lub log cua sov; sab laug khawm tswj lub nkoj tswj, thiab lwm yam, thiab txoj cai khawm tswj lub tsheb cav, twj paj nruag, thiab lwm yam.
Electronic Gear Lever
ZEEKR 009 yog nruab nrog lub zog iav hluav taws xob, uas nyob rau ntawm qhov chaw nruab nrab. Qhov saum npoo yog qhwv hauv NAPPA tawv cov ntaub ntawv, nrog ib tug chrome trim strip ntawm sab. Lub p iav yog lub khawm ywj pheej, nyob tom qab lub iav qib.
Wireless Charging
ZEEKR 009 yog nruab nrog lub wireless charger nyob rau hauv pem hauv ntej kab, nyob rau hauv pem hauv ntej ntawm lub iav kov, txhawb mus txog rau 15W wireless charging.
Dual Tsav Plaub-log Tsav
ZEEKR 009 txais yuav lub cev muaj zog plaub-log tsav. Lub zog siab tshaj plaws ntawm lub cev muaj zog pem hauv ntej yog 200kW, lub cev muaj zog tom qab yog 200kW, tag nrho lub cev muaj zog torque yog 686N·m, qhov siab tshaj plaws ceev yog 190km / h, official 0-100km / h acceleration yog 4.5 vib nas this, thiab Lub zog noj ib 100 km yog 18.3kWh.
Khoom Paub meej
|
● Txuj kev teeb tsa ○ Xaiv tau -- Tsis muaj |
ZEEKR 009 2022 WE Version | ZEEKR 009 2022 ME Version |
| Basic Parameters | ||
| Chaw tsim tshuaj paus | ZEEKR | ZEEKR |
| Qib | Nruab nrab thiab loj MPV | Nruab nrab thiab loj MPV |
| Hom zog | Hluav taws xob ntshiab | Hluav taws xob ntshiab |
| Lub sijhawm ua lag luam | 2022.11 | 2022.11 |
| NEDC ntshiab hluav taws xob cruising range (km) | 702 | 822 |
| Lub sijhawm them nyiaj ceev (h) | 0.47 | -- |
| Fast them feem pua | 80 | -- |
| Lub zog siab tshaj plaws (kw) | 400 | 400 |
| Qhov siab tshaj plaws torque (Nm) | 686 | 686 |
| Lub cev muaj zog (Ps) | 544 | 544 |
| Gearbox | Electric tsheb ib-ceev gearbox | Electric tsheb ib-ceev gearbox |
| Length * Dav * Qhov siab (mm) | 5209*2024*1848 | 5209*2024*1858 |
| Lub cev qauv | 5 qhov rooj thiab 6 rooj MPV | 5 qhov rooj thiab 6 rooj MPV |
| Qhov ceev tshaj plaws (km / h) | 190 | 190 |
| Official 0-100km/h acceleration (s) | 4.5 | 4.5 |
| Tsheb warranty | Plaub xyoos lossis 100, 000 mais | Plaub xyoos lossis 100, 000 mais |
| Lub cev lub cev | ||
| Wheelbase (mm) | 3205 | 3205 |
| Pem hauv ntej wheelbase (mm) | 1701 | 1701 |
| Tsheb kauj vab (mm) | 1713 | 1713 |
| Lub cev qauv | MPV | MPV |
| Lub tsheb qhov rooj qhib txoj kev | Qhov rooj viav vias + sab sliding qhov rooj | Qhov rooj viav vias + sab sliding qhov rooj |
| Lub cev ntim (L) | 376-2979 | 376-2979 |
| Qhov hnyav (kg) | 2830 | 2906 |
| Fais Tsav | ||
| Lub cev muaj zog | Cov hlau nplaum ruaj khov / synchronous | Cov hlau nplaum ruaj khov / synchronous |
| Tag nrho lub cev muaj zog (kW) | 400 | 400 |
| Tag nrho lub cev muaj zog (N·m) | 686 | 686 |
| Tus naj npawb ntawm tsav motors | Dual lub cev muaj zog | Dual lub cev muaj zog |
| Lub cev muaj zog layout | Pem hauv ntej + nram qab | Pem hauv ntej + nram qab |
| Hom roj teeb | Ternary lithium roj teeb | Ternary lithium roj teeb |
| Roj teeb hom | Ningde Era | Ningde Era |
| Roj teeb txias txoj kev | Ua kua txias | Ua kua txias |
| NEDC ntshiab hluav taws xob cruising range (km) | 702 | 822 |
| Roj teeb muaj zog (kWh) | 116 | 140 |
| Kev siv hluav taws xob ib 100 km (kWh / 100km) | 18.3 | -- |
| Chassis / Log | ||
| Tsav hom | Dual lub cev muaj zog plaub-log tsav | Dual lub cev muaj zog plaub-log tsav |
| Plaub-log tsav | Hluav taws xob plaub-log tsav | Hluav taws xob plaub-log tsav |
| Pem hauv ntej ncua kev kawm ntawv hom | Ob chav wishbone ywj siab ncua kev kawm ntawv | Ob chav wishbone ywj siab ncua kev kawm ntawv |
| rear ncua kev kawm ntawv hom | Multi-link ywj siab ncua kev kawm ntawv | Multi-link ywj siab ncua kev kawm ntawv |
| nres nres hom | Chaw nres tsheb hluav taws xob | Chaw nres tsheb hluav taws xob |
| Pem hauv ntej log specifications | 255/50 R19 | 255/50 R19 |
| Tsheb log specifications | 255/50 R19 | 255/50 R19 |
| Kev Nyab Xeeb Passive | ||
| Main / neeg nrog caij airbag | Main ● / Tus Lwm Thawj ● | Main ● / Tus Lwm Thawj ● |
| Pem hauv ntej / rear sab airbags | Pem hauv ntej ● | Pem hauv ntej ● |
| Pem hauv ntej / nram qab lub taub hau airbags (curtain airbags) | Pem hauv ntej ● / rear ● | Pem hauv ntej ● / rear ● |
| Tyre siab xyuas muaj nuj nqi | Log tsheb siab zaub ● | Log tsheb siab zaub ● |
| Lub rooj zaum siv tsis fastened ceeb toom | Tag nrho lub tsheb | Tag nrho lub tsheb |
| Pem hauv ntej / nram qab chaw nres tsheb radar | Pem hauv ntej ● / rear ● | Pem hauv ntej ● / rear ● |
| Cov duab pab tsav tsheb | 360 degree panoramic duab | 360 degree panoramic duab |
| Pob tshab chassis / 540 degree duab | ● | ● |
| Cov koob yees duab | 14 | 14 |
| Tsav Tsheb muaj nuj nqi | ||
| Cruise system | Adaptive cruise ntawm kev ceev ceev | Adaptive cruise ntawm kev ceev ceev |
| Rov qab sab ceeb toom system | ● | ● |
| Satellite navigation system | ● | ● |
| Navigation tsheb cov ntaub ntawv qhia | ● | ● |
| Txoj kab nruab nrab | ● | ● |
| Txoj kev tsheb ciav hlau lees paub | ● | ● |
| Tsis siv neeg nres tsheb | ● | ● |
| Tsos/Anti-tub sab nyiag | ||
| Rim khoom | Aluminium alloy | Aluminium alloy |
| Hluav taws xob lub cev | ● | ● |
| Hom tseem ceeb | UWB digital key Bluetooth tseem ceeb NFC / RFID yuam sij |
UWB digital key Bluetooth tseem ceeb NFC / RFID yuam sij |
| Keyless start system | ● | ● |
| Chaw taws teeb pib ua haujlwm | ● | ● |
| Roj teeb preheating | ● | ● |
| Kev tawm sab nraud | ● | ● |
| Tsawg beam teeb qhov chaw | LED | LED |
| Screen/System | ||
| Central tswj xim npo | Kov LCD npo | Kov LCD npo |
| Central tswj qhov screen loj | 15.4 hli | 15.4 hli |
| Bluetooth / tsheb xov tooj | ● | ● |
| Txawb xov tooj interconnection/mapping | Original interconnection/mapping | Original interconnection/mapping |
| Lub suab paub tswj qhov system | ● Multimedia system ●Navigation ● Xov tooj ● Tsheb qhov rais ● Cua txias |
● Multimedia system ●Navigation ● Xov tooj ● Tsheb qhov rais ● Cua txias |
| Steering Log | ||
| Steering log khoom | Tawv tawv | Tawv tawv |
| Hloov qauv | Electronic gear shift | Electronic gear shift |
| Multifunction kauj log | ● | ● |
| Trip computer display screen | xim | xim |
| Tag nrho LCD ntsuas vaj huam sib luag | ● | ● |
| LCD ntsuas qhov loj me | 10.25 hli | 10.25 hli |
| Them Rau Tsheb | ||
| Multimedia / them nyiaj interface | HDMI Hom-C USB |
HDMI Hom-C USB |
| Tus nab npawb ntawm USB/Type-C interfaces | 3 nyob rau hauv pem hauv ntej kab / 4 nyob rau hauv lub rear kab | 3 nyob rau hauv pem hauv ntej kab / 4 nyob rau hauv lub rear kab |
| Txawb xov tooj wireless charging muaj nuj nqi | Pem hauv ntej kab | Pem hauv ntej kab |
| Lub nra compartment 12V fais fab mov interface | ● | ● |
| Seat Configuration | ||
| Cov khoom siv zaum | Tawv tawv | Tawv tawv |
| Main / neeg nrog caij electric hloov | Main ● / Tus Lwm Thawj ● | Main ● / Tus Lwm Thawj ● |
| Pem hauv ntej lub rooj muaj nuj nqi | ● Massage (tsuas yog tsav tsheb xwb) ● Qhov cua ● Cua sov |
● Massage (tsuas yog tsav tsheb xwb) ● Qhov cua ● Cua sov |
| Lub hwj chim lub rooj nco muaj nuj nqi | ● Kab rov qab ● Lub rooj tsav tsheb |
● Kab rov qab ● Lub rooj tsav tsheb |
| Kev hloov lub rooj zaum thib ob | ● Kev kho ob txhais ceg ● Kev kho lub nraub qaum ● Kev hloov kho pem hauv ntej thiab nram qab |
● Kev kho ob txhais ceg ● Kev kho lub nraub qaum ● Kev hloov kho pem hauv ntej thiab nram qab |
| Pem hauv ntej / nram qab nruab nrab armrest | Pem hauv ntej ● / rear ● | Pem hauv ntej ● / rear ● |
